Author Topic: Inexpensive custom console for sit inside fishing kayaks...  (Read 24316 times)

Offline moe

  • Yakfisher
  • ***
  • Posts: 50
Re: Inexpensive custom console for sit inside fishing kayaks...
« Reply #9 on: October 10, 2018, 09:00:13 AM »
What thickness is that console.

Yakfisher

Re: Inexpensive custom console for sit inside fishing kayaks...
« Reply #9 on: October 10, 2018, 09:00:13 AM »
yakfishing

Offline shooter

  • Yakmaster
  • ****
  • Posts: 661
  • live for today
Re: Inexpensive custom console for sit inside fishing kayaks...
« Reply #8 on: May 28, 2017, 05:32:08 PM »
Moe the product is called starboard plastic sheets. Comes in many colours /sizes and from many different companies. West Marine carries it , but you can search for the closest spot and what you would like to buy. Great product

Offline singingdog

  • Old Salt
  • *****
  • Posts: 1217
Re: Inexpensive custom console for sit inside fishing kayaks...
« Reply #7 on: May 28, 2017, 06:51:22 AM »
Great post!

Offline moe

  • Yakfisher
  • ***
  • Posts: 50
Re: Inexpensive custom console for sit inside fishing kayaks...
« Reply #6 on: May 27, 2017, 02:29:09 PM »
Where dis you find the plastic cutting board that size?.I made one years back using 1/4 inch Baltic birch.Getting old.Need to replace mine.Moe

Offline fourx4ord

  • Newbie Yakker
  • *
  • Posts: 6
Re: Inexpensive custom console for sit inside fishing kayaks...
« Reply #5 on: March 22, 2009, 09:14:16 PM »
Hey BlueDaksi

Nice truck!!




« Last Edit: March 24, 2009, 11:48:37 AM by fourx4ord »

Water Wolf QCI

  • Guest
Re: Inexpensive custom console for sit inside fishing kayaks...
« Reply #4 on: March 05, 2009, 09:49:56 PM »
Great post man :)

Offline Don

  • Yakfisher Founding Member
  • Old Salt
  • *****
  • Posts: 4799
  • www.facebook.com/kayakfishing
Re: Inexpensive custom console for sit inside fishing kayaks...
« Reply #3 on: March 05, 2009, 08:03:45 PM »
Nice job, I used to do the exact same thing on my Pamlico.

Offline gouthro

  • Yakfisher
  • ***
  • Posts: 143
Re: Inexpensive custom console for sit inside fishing kayaks...
« Reply #2 on: March 04, 2009, 03:32:16 PM »
nice job, Blue
Joe

Offline BlueDaksi

  • Junior Yakker
  • **
  • Posts: 17
  • FJ Cruiser - my dream kayak hauler...
Inexpensive custom console for sit inside fishing kayaks...
« Reply #1 on: March 02, 2009, 08:33:47 AM »

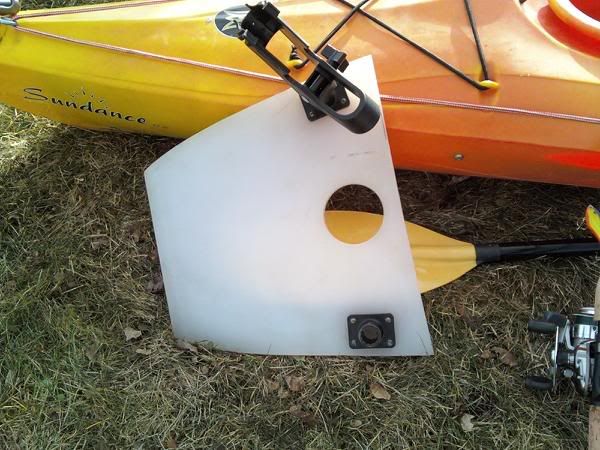

Here are the photos of my inexpensive, but very practical fishing console made from an $8 cutting board...

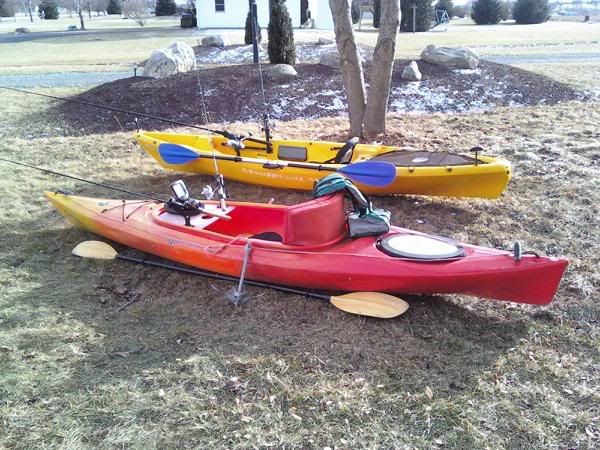

The top kayak (solid yellow) is a sit on top Mad River Synergy 120.  The bottom kayak is a sit inside 12' Perception Sundance.  I've put Berkley rod holders on both and made the custom console for the Perception to mount my fishfinder and two rod holders...





The console slides into the channel around the inner lip of the cockpit.  It is not latched into place, but wedges in there quite nicely to stay secure, but I can pull it out quickly when I need to.  Another thing that is nice about it is that you can set the console up on a table or on the ground with the rods in them which makes it a nice platform for setting them up before going out.  Plus, I can unlock the rod holders, flip the console over, and it still can be used as a cutting board for cleaning fish!

I'm really pleased with how it turned, you can't beat the cost, and it took under an hour to make.  Anybody should be able to make this console for any sit inside kayak with a suitable inner groove around the cockpit.  Here's how I made mine...

Parts and equipment needed:

-One 24"x24" stiff piece of cardboard (for making a template)
-One 24"x18" "cheapie" plastic cutting board
-Two Berkley rod holders and mounts (Scotty or most any other type could be custom fitted onto the console)
-Eight 1" bolts with nuts and washers (I used brass and stainless would work as well)
-Pair of scissors to cut cardboard
-Sharpie marker or pencil
-Drill
-Jigsaw with wood cutting or multi-purpose blade
-Coarse sandpaper
-Safety googles

Procedure:

-Make a template out of cardboard.  Place the sheet of cardboard square over the front of the cockpit of the kayak.  I left a 3"-4" gap between the very front edge of the cockpit and the cardboard as a pass-through for my fishfinder cables and reach-through access.  Reach underneath the cardboard and with a marker or pencil, trace the rim of the cockpit onto the cardboard.
-Cut out the cardboard template. Note that the finished console will need to be larger than what you have traced, so before you cut out the template from the tracing, you need to add about 1/2" to around the edge..  You will also need to trim and cut the template to the length that you desire (some cockpits are smaller than others)
-Using a marker or pencil, trace the cardboard template onto the cutting board.
-Using the jigsaw, cut out the the shape of the console on the cutting board.  Note that you should do this at a slow cutting speed.  If the blade is moving too fast, it will melt the plastic and bind, so slower is better.
-Sand the rough edges of the console before fitting it to your kayak.  Some additional trimming with the jigsaw and sanding may be needed to get the console to fit just right.
-With the console in place, position the rod holder mounts in their desired locations and using a marker or pencil, mark the bolt holes onto the console.  I suggest actually sitting in the kayak and putting a rod in a holder in the mount to do this for proper fitment...
-drill the holes for the rod holder mount(s)
-Bolt the rod holder mounts onto the console using the bolts with nuts and washers.
-If you have a way to bolt your fishfinder onto the console (I attach mine with a bungee cord), do so by marking and drilling in the same manner as the rod holder mounts.  Do whatever works best for you and you can even add a cupholder if you wish like I have by tracing it out and drilling a starter hole for the jigsaw blade before cutting it out.

Actually, the cupholder hole has come in pretty handy for other purposes.  For trolling when I want some of my longer handle rods pointing perpendicular from kayak, its obviously desirable (and much easier to paddle) when they are tilted up a bit.  The handles will go right into the cupholder hole allowing me to put them into proper position.

That's pretty much all that there is to it!
« Last Edit: March 02, 2009, 09:48:00 AM by BlueDaksi »
